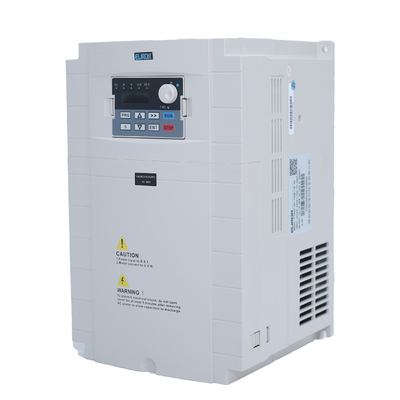

China Manufacturer VFD Frequency Converter 3 Phase 11kW 220V 380V Single Phase to 3 Phase Converter 151*100*133-655*377*297MM

1 set
MOQ
$6,780.00(1 - 99 sets) $288.00(>=100 sets)
preço
China Manufacturer VFD Frequency Converter 3 Phase 11kW 220V 380V Single Phase to 3 Phase Converter 151*100*133-655*377*297MM
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: HS710 Series of AC drive
Warranty: 3months-1year
Type: AC drive
Certificação: CE REACH RoHS
Size: 151*100*133-655*377*297MM
Customized: Yes
Control Mode: Vector Control, V/F, Cloosed Loop Control
Rated Power: 0.7-500KW
Nominal Voltage: 220V-380V-480V
power phase number: 1 phase 3phase
Product name: HS710 Series of AC drive
Informação básica
Certificação: CE REACH RoHS
Model Number: HS710 Series of AC drive
Condições de Pagamento e Envio
Packaging Details: Carton/Carton + wooden pallet
Supply Ability: 20000 Set/Sets per Month
Descrição de produto
Products Description
Product name
HS710 Series of AC drive
Place of Origin
Shandong, China
Brand Name
Eunon
Warranty
Other
Type
AC drive
Certification
CE REACH RoHS
Customized
Yes
product display
Model
Power Capacity
kVA
Input Current
A
output Current
A
Adaptable Motor
kW
Gross weight
kg
HS710-4T-0.75GB/1.5P
1.5
3.4
2.1
0.75
1.25
HS710-4T-1.5GB/2.2P
3.0
5.0
3.8
1.5
1.3
HS710-4T-2.2GB/4.0P
4.0
5.8
5.1
2.2
1.3
HS710-4T-4.0GB/5.5P
5.9
10.5
8.5
3.7
3.05
HS710-4T-5.5GB/7.5P
8.9
14.6
13
5.5
3.15
HS710-4T-7.5GB/11P
11.0
20.5
16
7.5
3.25
HS710-4T-11GB/15P
17.0
26.0
24
11
3.55
HS710-4T-15GB/18.5P
21.0
35.0
32
15
6.3
HS710-4T-18.5GB/22P
24.0
38.5
36
18.5
6.55
HS710-4T-22GB/30P
30.0
46.5
44
22
6.8
HS710-4T-30G/37P
40.0
62.0
58
30
17.5
HS710-4T-37G/45P
57.0
76.0
70
37
17.9
HS710-4T-45G/55P
69.0
92.0
90
45
25.1
HS710-4T-55G/75P
85.0
113.0
110
55
25.5
HS710-4T-75G/90P
114.0
157.0
152
75
40.2
HS710-4T-90G/110P
134.0
180.0
172
93
41.5
HS710-4T-110G/132P
160.0
214.0
205
110
42.3
HS710-4T-132G/160P
192.0
256.0
253
132
69.8
HS710-4T-160G/185P
231.0
307.0
304
160
71.3
Technical Index and Specification


Input
Rated Voltage, Frequency
3-phase（4T#sereis）380V;50/60HZ
1-phase（2S#series）220V;50/60HZ
Allowed Voltage Range
3-phase（4T#series）320V～460V
1-phase（2S#series）160V～260V


Output
Voltage
4T#series; 0～460V
2S#series; 0～260V
frequency
Low frequency mode: 0～300HZ ; High frequency mode: 0～3000HZ
Overload Capacity
G type: 110% for long-term, 150% for 1 min, 180% for 5s
P type: 105% for long-term, 120% for 1 min, 150% for 1s
Control Mode
V/F control, advanced V/F control, V/F separation control, electric current vector control
Frequency Setting Resolution
Analog Input
0.1% of maximum output frequency
Digital Setting
0.01 Hz
Frequency Precision
Analog Input
Within 0.2% of maximum output frequency
Digital Setting
Within 0.01% of set output frequency





V/F Control
V/F Curve
(voltage frequency character)
Reference frequency setting 5~600 Hz, multipoint V/F curve setting, or fixed curve of constant torque, low decreasing torque 1, low decreasing torque 2, square torque

Torque Compensation
Manual setting: 0.0~30% of rated output
Automatic compensation: according to output current and motor parameter

Automatic Current-limiting and Voltage-limiting
During acceleration, deceleration or steady running, detect automatically the current and voltage of motor stator, and control it
within bounds based on unique algorithm, minimize fault-trip chance









Senseless Vector Control
Voltage Frequency Character
Adjust pressure/frequency ratio according to motor parameter and unique algorithm



Torque Character
Starting torque:
3.0 Hz 150% rated torque (VF control)
0.5 Hz 180% rated torque (SVC, FVC)
0.05 Hz 180% rated torque (VC)
Operating speed precision in steady state: ≤±0.5% rated synchronous speed
Torque response: ≤50ms VC, SVC, FVC ≤20ms
Motor Parameter Self-measurement
Being able to detect parameter automatically under static state and dynamic state of motor, thus guarantee an optimum control.
Current and Voltage Restrain
Current closed-loop control, free from current impact, perfect restrain function of overcurrent and overvoltage
Undervoltage Restrain during Running
Specially for users with a low or unsteady voltage power grid: even lower than the allowable voltage range, the system can maintain the longest possible operating time based on its unique algorithm and residual energy allocation strategy
Multi-velocity and Traverse Operation
16 segments programmable multi-velocity control, multiple operation mode. Traverse operation: preset frequency and center
frequency adjustable, parameter memory and recovery after power cut.
PID Control
RS485
Communication
Built-in PID controller (able to preset frequency). Standard configuration RS485 communication function, multiple communication
protocol for choice, synchronizing control function.

Frequency Setting
Analog Input
Direct voltage 0~10V, direct current 0~20mA (optional up limit and lower limit)
Digital Input
Operation panel setting, RS485 port setting, UP/DW terminal control, or combined with analog input


Output Signal
Digital Input
2 channel OC output and one channel relay output (TA, TB, TC), up to 16 choices

Analog Input
2 channel analog signal output, output ranging within 0~20mA or 0~10V with flexibly setting, achievable output of physical
quantities like set frequency, output frequency
Automatic Steady-voltage Operation
Dynamic steady state, static steady state, and unsteady voltage for choices to obtain the steadiest operation
Acceleration and Deceleration Time Setting
0.1s~3600min continuous setting, S type and linear type mode for choice



Brake
Dynamic Braking
Dynamic braking initial voltage, backlash voltage and dynamic braking continuous adjustable
DC
Braking
Halt DC braking initial frequency: 0.00~[F0.16] upper limit frequency Braking time: 0.0~100.0s; Braking current: 0.0%~150.0% of rated current
Flux Restraint
0~100 0: invalid
Low Noise Running

Carrier frequency 1.0kHz~16.0kHz continuous adjustable, minimize motor noise
Speed Tracking and Restart Function

Smooth restart during operation, instantaneous stop and restart
Counter
A built-in counter, facilitate system integration
Operation Function
Upper limit and lower limit frequency setting, frequency hopping operation, reversal running restraint, slip frequency compensation, RS485 communication, frequency control of progressive increase and decrease, failure recovery automatically, etc.



Display



Operation Panel Display
Running State
Output frequency, output current, output voltage, motor speed, set frequency, module temperature, PID setting, feedback, analog input and output.

Alarm
The latest 6 faults record; running parameters record when the latest fault tripping happens including output frequency, set
frequency, output current, output voltage, DC voltage4 and module temperature.

Protective Function
Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit, default phase of input and
output, motor parameter adjustment abnormality, internal memory fault, etc.
Overcurrent, overvoltage, undervoltage, module fault, electric thermal relay, overheat, short circuit, default phase of input and
output, motor parameter adjustment abnormality, internal memory fault, etc.



Environment
Ambient Temperature
-10℃~+40℃ (please run the VFD in derated capacity when ambient temperature is 40℃~50℃)
Ambient Humidity
5%~95%RH, without condensing drops
Surroundings
Indoors (without direct sunlight, corrosive or flammable gas, oil fog and dust)
Altitude
Running in derated capacity above 1000m, derate 10% for every 1000m rise.

Structure
Protection Level
IP20
Cooling Method
Air cooling with fan control
Installation Method
Wall-hanging type, cabinet type
